Build Your Chassis
1953-56 Ford F100
Select and customize the performance package engineered for your driving style.
Touring
Click to select
View Standard Equipment
Package Price
$24,185.00
Touring Package
Complete at $24,185.00
Jig welded, full cleaned & prepped 0.180″-wall mandrel bent frame assembly
2×4 front and rear rails, 2×6 mid rail and lateral crossmember, bolt-on running board mounts
Configurable transmission-specific crossmember
Wilwood Pro Spindles
Sport IFS control arms, TIG welded w/ Moog ball joints & polyurethane bushings (paint ready bare steel)
AME exclusive power rack & pinion, 17.5:1 ratio, tuned valving, AN6 fittings, double shear bracket, filter & tie rod ends
AME-built braced axle housing, custom width, 3.150″ axle bearing, forged housing ends, 3″x0.188″ axle tubes
Alloy 31-spline axle package, pre-installed axle bearings, 1/2″ wheel studs
9″ 31-spline center section w/ limited slip & mounting hardware
Parallel 4-bar links, TIG welded, 1.375″ diameter tubes, billet tube adapters, Johnny Joint rod ends
Full length low mount panhard bar with Johnny Joint and polyurethane bushings
3-position adjustable front & rear sway bars with adjustable end links
Wilwood Dynalite brake package, 4 piston 11″ front & rear with parking brake
Strange Engineering custom valved single adjustable twin tube coilover package
Pre-assembly service with preliminary alignment
Air Touring
Click to select
View Standard Equipment
Package Price
$25,045.00
Air Touring Package
Complete at $25,045.00
Jig welded, full cleaned & prepped 0.180″-wall mandrel bent frame assembly
2×4 front and rear rails, 2×6 mid rail and lateral crossmember, bolt-on running board mounts
Configurable transmission crossmember kit
Wilwood Pro Spindles
Sport IFS control arms, TIG welded w/ Moog ball joints & polyurethane bushings (paint ready bare steel)
AME exclusive power rack & pinion, 17.5:1 ratio, tuned valving, AN6 fittings, double shear bracket, filter & tie rod ends
AME-built braced axle housing, custom width, 3.150″ axle bearing, forged housing ends, 3″x0.188″ axle tubes
Alloy 31-spline axle package, pre-installed axle bearings, 1/2″ wheel studs
9″ 31-spline center section w/ limited slip & mounting hardware
Parallel 4-bar links, TIG welded, 1.375″ diameter tubes, billet tube adapters, Johnny Joint rod ends
Full length low mount panhard bar with Johnny Joint and polyurethane bushings
AME-built CNC bent front sway bar with adjustable end links
Wilwood Dynalite brake package, 4 piston 11″ front & rear with parking brake
Strange Engineering custom valved single adjustable twin tube shock package

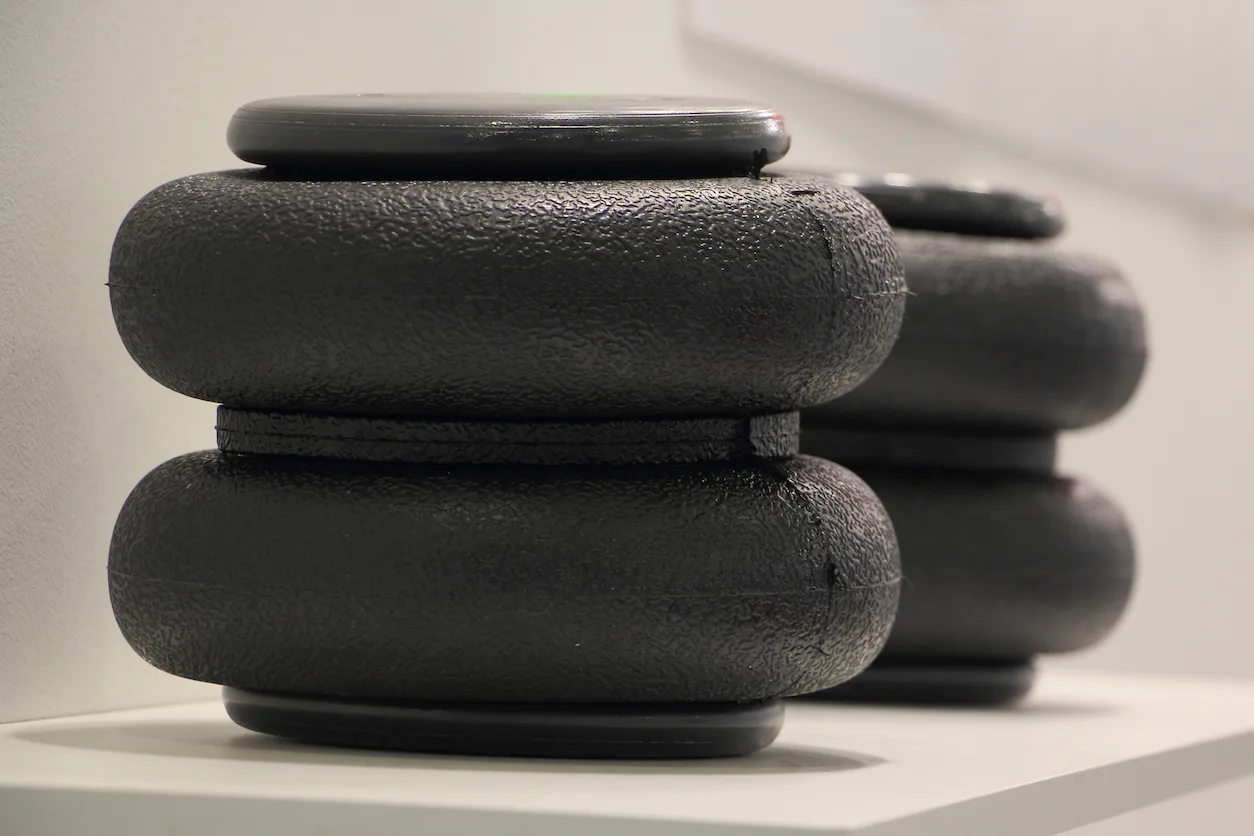

Slam Specialties front and rear air springs
Brake pedal assembly for automatic transmission
Pre-assembly service with preliminary alignment
